G13 t12 tutup mburi

JE minangka desain omah tabung profesional, produksi produksi lan pabrik. Cap end tabung dipimpin minangka bagean penting kanggo dipimpin omah tabung lan minangka produk utama kita. Capt tabung tabung sing wis diprodhuksi utamane cocog kanggo ukuran tabung kayata T5, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8, T8. Ukuran kasebut bisa nyedhiyakake tutup tutup G13led lan tutup anti banyu. Tutup pungkasane anti t12 pungkasan iki cocog kanggo tabung T10, kayata tabung wutah tanduran. Kajaba iku, kita uga bisa ngatur tutup mburi mburi miturut kabutuhan pelanggan. Yen sampeyan duwe dhukungan, monggo hubungi kita lan kita bakal menehi solusi sing cocog karo sing dibutuhake.

Kirim Pitakonan

Deskripsi Produk

The outer diameter of the LED T12 is 38MM. In addition to the waterproof end cap, we also have the G13 end cap. The G13 end cap is divided into fixed end cap and rotatable end cap. Below, we will introduce our G13 T12 end cap in detail.
This G13 T12 end cap has a total length of 20MM, an effective length of 13.5MM, and a design thickness of 1.0MM; it is made of PC material injection molding, so it has good weather resistance and is durable. It has two screw holes in the middle, and the hole positions are compatible with most T12 aluminum-plastic tubes and plastic-coated aluminum tubes on the market. There are two copper needles stamped in the middle according to the G13 standard, which can be punched into single-line, double-line, or only needles without wires according to the requirements of use. The conventional color of the plug is porcelain white, and it can also be customized with a specified color.

Product Parameter (Specification)

Item NO.	JE-T12-EC11
Effective length	12mm
Tube	T12 tube
Material	PC
Color	White
Shape	Round
Pin	G13
Wire	With out wire/One wire
Waterproof	IP20

Product Feature And Application

G13 T12 end caps are mainly used in the production of LED tube replacement project, which are widely used in hotels, supermarkets, large shopping malls, parking lots, light box advertising, plant lighting, etc..

Product Details

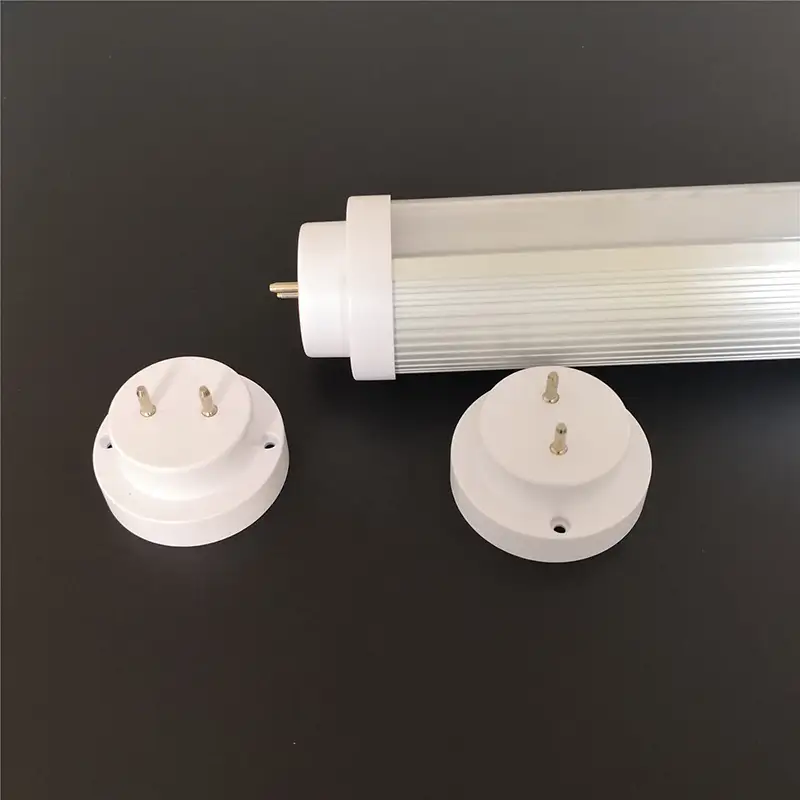

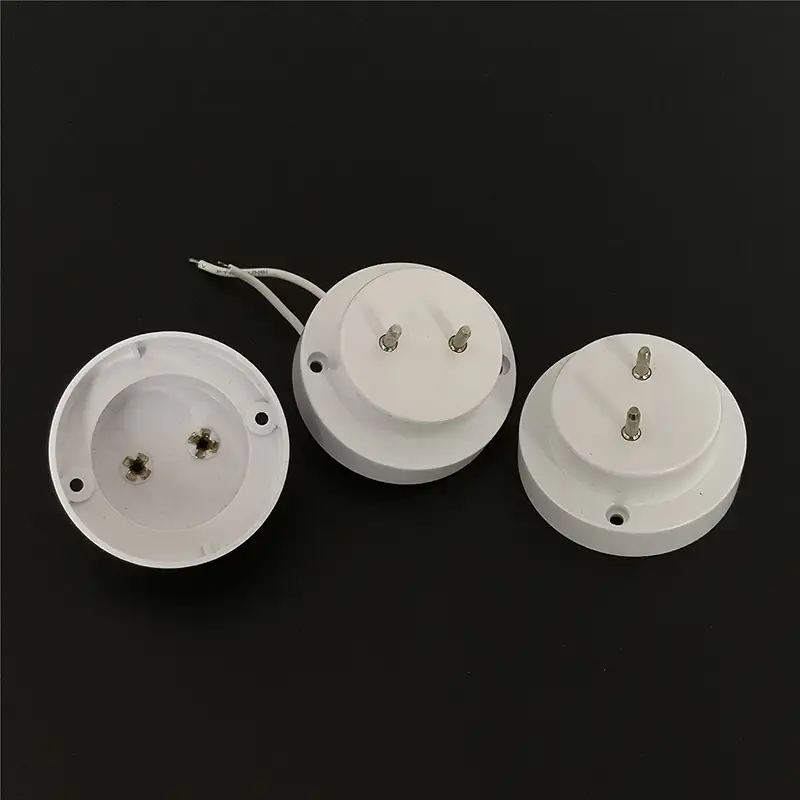

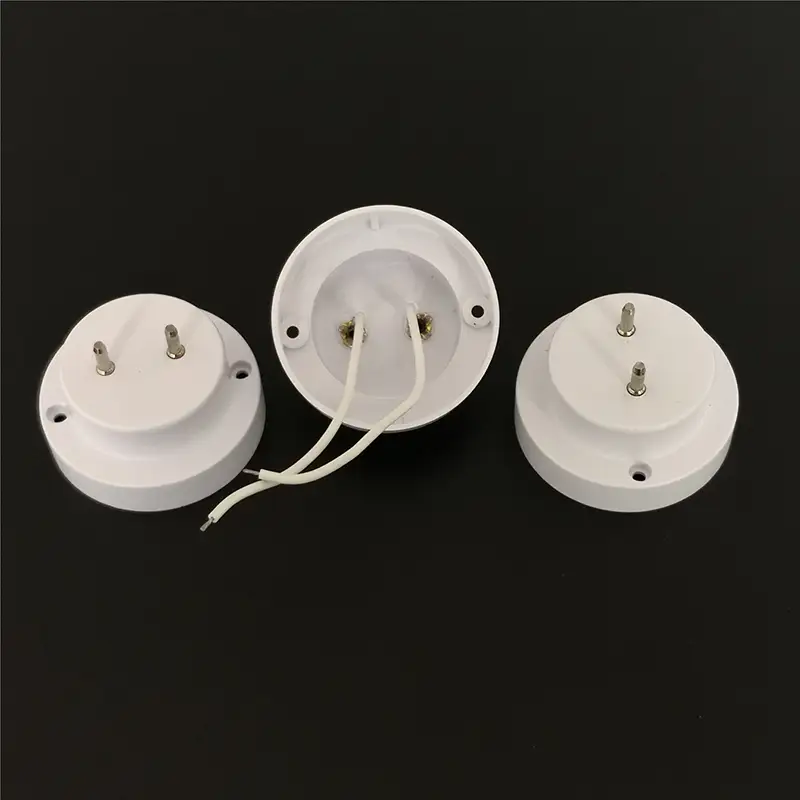

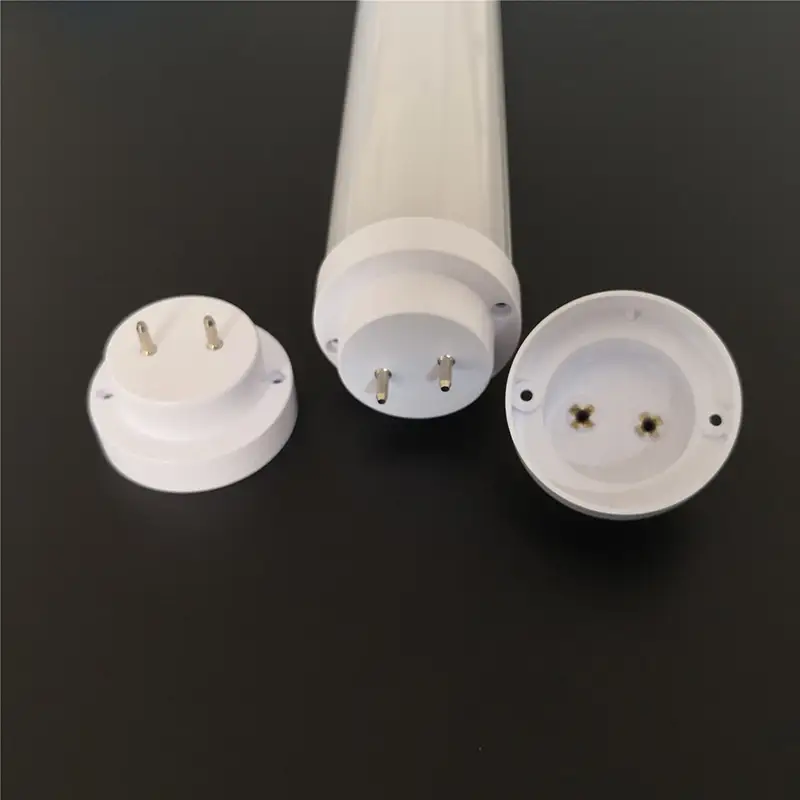

More details of this G13 T12 end cap:

Product Qualification

Dongguan Jinen Lighting Technology Co., Ltd. is located in Dongguan City, Guangdong Province, the "world factory". The products we can produce include various special-shaped plastic profiles, PC round tubes for LED lighting, LED plastic tube diffusers, LED linear light housings, LED T5/T6/T8/T10/T12 tube housings, LED three-proof housings, LED LED aluminum profiles for light bars, etc. The materials we commonly process are PC, PMMA, ABS, PVC, etc. Most of the products are used in lighting, and some products are used in construction, decoration, packaging, toys, medical equipment and other industries.

At present, the LED tube end caps produced by JE mainly include the following types: PC plastic tube end caps, aluminum-plastic combination end caps, locking screw end caps, step end caps, and integrated end caps. Some of these types can provide waterproof LED tube end caps with a waterproof coefficient of IP68, which are suitable for some professional lighting places, such as plant lighting, outdoor linear lighting, etc. The accessories of the LED tube end caps mainly include: T-type terminal wire, O-type terminal wire, plug inner plug, conductive copper sheet, stainless steel screw, hardened screw, power shell end cover, copper needle protection sleeve .
